Double Platform Scissor Auto Lift GL3500ZM

Double platform scissor auto lift for bigger cars, very useful and easy up the cars.
  • Item No.:

    Scissor Lift
  • Payment:

    FOB
  • Product origin:

    China
  • Color:

    Bule or Customize
  • Shipping port:

    Guangzhou/Shenzhen
  • Lead Time:

    15 working day
  • Product Details
Guangli Car Lifts:

Gl3500/ZM Double platform scissor lift for four-wheel alignment:

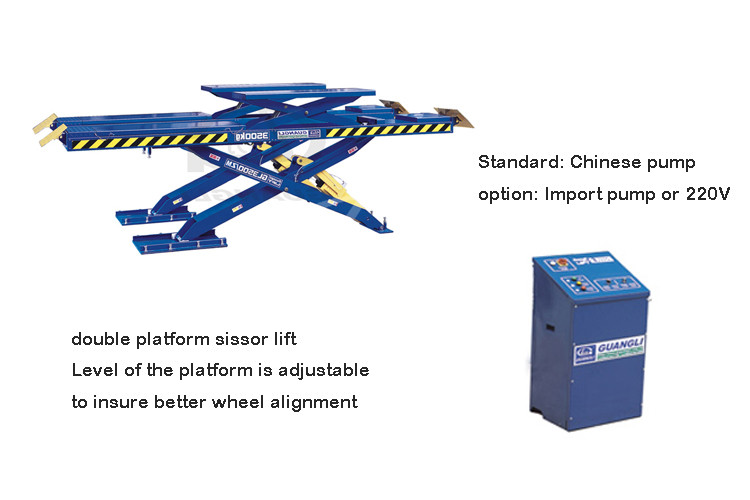

Hydraulic synchronized, double platform sissor lift

Pneumatic double mechanical gear lock safety system

Front turnplate is adjustable, suit for wheel alignment

Standard: Chinese pump; option: Import pump or 220V.

Level of the platform is adjustable,to insure better wheel alignment

twins scissor lift

scissor lift for cars


Large car scissor lift Technical Specifications:

Main Lifting weight(Kg) 3500

Main Lifting height(mm) 330-1800

Secondary lifting weight(Kg) 2000

Secondary lifting height(mm) 410

Pneumatic 6-8Kg/cm2

Voltage(V) 380

Frequency(Hz) 50

Motor power(Kw) 2.2

Equipment weight(Kg) 1600

Outline drawing (unit:mm)



Foundation Drawing (Unit:mm)



Instruction


1、The control box for the equipment can be exchanged from right to left

2、When the floor level and the thickness reach the requirement, the equipment can be installed on the floor


3、When need to be hidden under the ground , the base concrete thickness shall be ≥200mm, the base level shall be ≤ 5mm
